SIEM Home Lab Project

This project documents my experience performing the SIEM Home Lab overview on Medium.com. This learning collection teaches how to make a small SIEM network in Oracle VirtualBox, a powerful network virtualization tool.

Part 1: Setup

This part consist of multiple steps which set up each part of the network.

• Task 1: PfSense Setup
  • I download an iso image of PfSense from its official website.
  • In VirtualBox, I open the PfSense iso as a new system.
  • The new firewall is configured to have adapter 1 be a bridged WAN connection. Adapter 2 is a LAN connection.
  • Starting the new system, I complete initial installation.

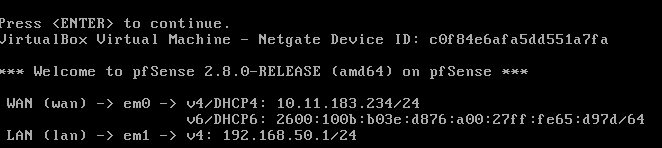

  • Using the PfSense console, I configure the LAN to have the address 192.168.50.1, with a DHCP range starting at 192.168.50.20.

• Task 2: Windows Setup
  • I download iso images for Windows 10 and Windows Server 2019 from the official website.
  • I create a new machine for each iso, setting their network to the PfSense LAN.

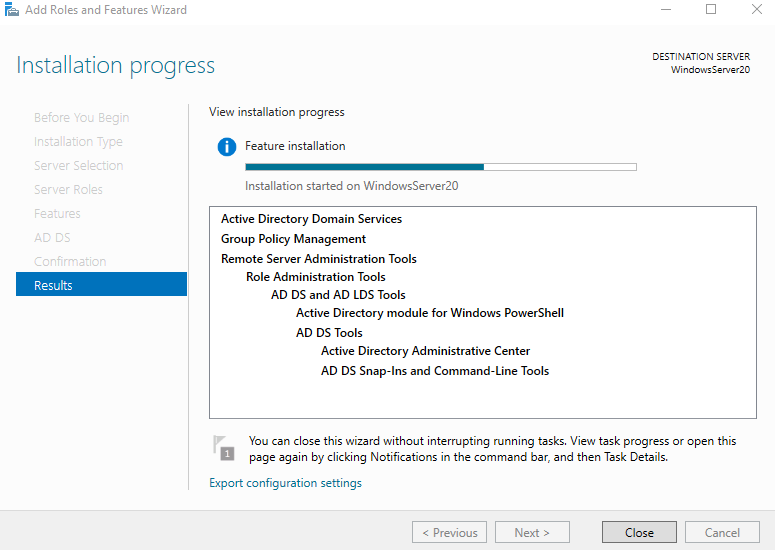

  • Starting the Server machine, I open the Server Manager App and install Active Directory Domain Services.

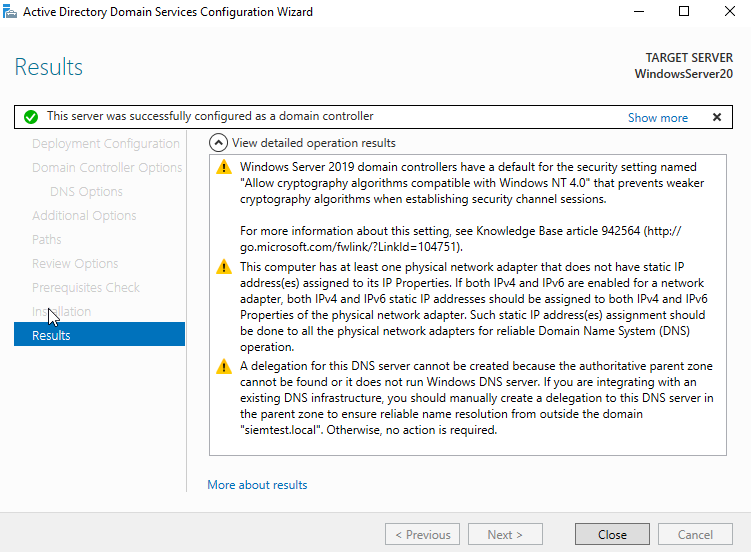

  • I promote the Server to be a Domain Controller, then create an Admin account in Acive Directory Users and Computers.
  • Starting the User machine, I set its DNS IP address to the Server’s IP address.
  • I adjust the settings on both machines to allow an LAN connection. This involves disabling firewall and IPv6 and allowing remote connections.

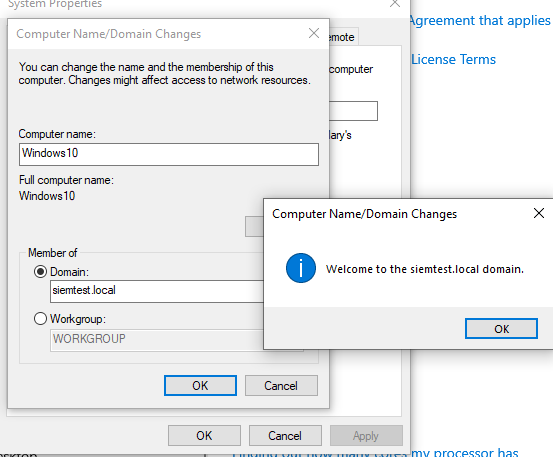

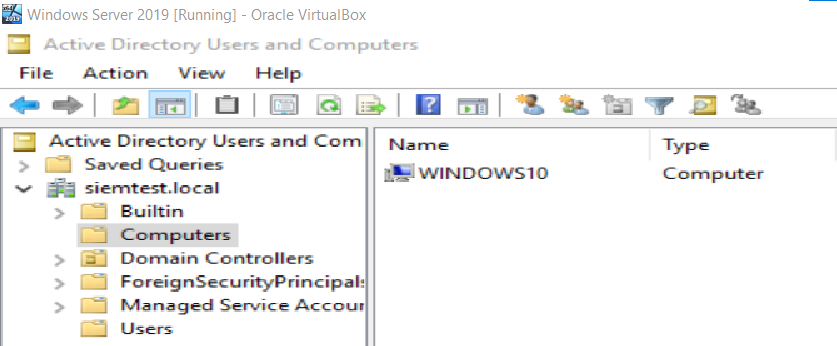

  • I connect the User machine to the siemtest.local domain using the Admin account. I confirm the connection on the Server machine.

• Task 3: Linux Setup
  • I download an iso image for Ubuntu from the official website.
  • I set its network to the PfSense LAN and disable its firewall.

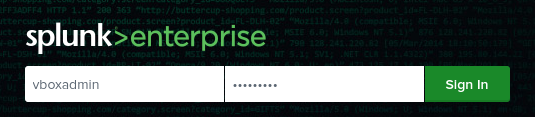

  • Starting the machine, I download and install Splunk Enterprise.
  • In the Splunk WebUI, I set it to recieve data on port 9997 (default). I set port 9997 to be open on the Windows machines.
  • In the Splunk WebUI, I create a new recieving index for each Windows machine.
  • On the Windows machines, I download and install Splunk Universal Forwarder, and set it to forward data to the Linux machine.
  • In the Splunk WebUI, I confirm that it is recieving data from the Windows machines.

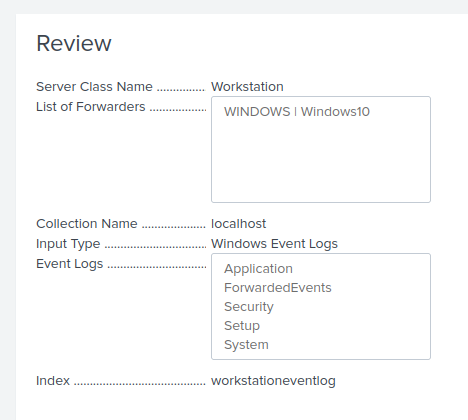

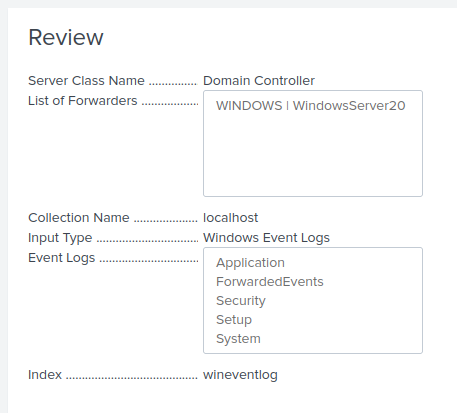

  • I set Splunk to forward all event logs from each machine to their respective index.
  • Now, all events on the Windows machines are logged remotely on the Linux machine


Part 2: Firewall Alert

This part consist of configuring Splunk to create an alert and send an email after certain firewall activity.

• Task 1: PfSense Setup
